Aluminum Coil
Product Introduction of Aluminum Coil
Aluminum coils are widely used in electronics, packaging, construction, machinery, etc. There are many aluminum coil manufacturers in my country, and the production technology has caught up with developed countries.
Shand Baowu Steel Group. Offer Aluminum Coil In Various Thicknesses, Standard Cut Lengths. Provide Custom.

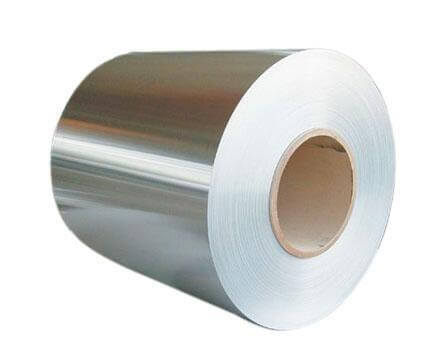

Aluminum Coil
Description of Aluminum Coil
1000 series aluminum is also called pure aluminum. Among all series, 1000 series contains the most aluminum. The purity can reach more than 99.00%. Since it does not contain other technical elements, the production process is relatively simple and the price is relatively cheap.1100 is the softest aluminum available. It exhibits great ductility, corrosion resistance and high reflectivity. This grade of coil is commonly used for basic cookware, pots and pans and lids, lamps, lanterns, construction materials, traffic signs and ceilings.
| STRENGTH (METRIC/IMPERIAL) | ELONGATION | ||
|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | % |
| 1100-O | 89 MPa / 13,000 psi | 5,000 | 30 |
| 1100-H14 | 124 MPa / 18,000 psi | 17,000 | 3 |
| 1100-H18 | 165 MPa / 24,000 psi | 22,000 | 2 |
3003 aluminum has some of the best formability and is considered on of the most widely used aluminum alloys. It shares many of the same uses as 1100 aluminum, but shows better strength, for example. It can be purposed for more advanced cookware and non-stick pans.
GRADE |
| SIZES ROUTINELY STOCKED |
|
Temper | Thickness (Metric/Imperial) | Width | Length |
3003-O | .25 – 6mm / 1/64- 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
3003-H12 | .25 – 6mm / 1/64- 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
3003-H14 | .25 – 6mm / 1/64- 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
3003-H16 | .25 – 6mm / 1/64- 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
3003-H18 | .25 – 6mm / 1/64- 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | HARDNESS | |||
|---|---|---|---|---|---|---|
| Temper | Ultimate Tensile Strength | Ultimate Yield Strength | Shear Strength | Fatigue Strength | % | Brinell |
| 3004-O | 180 MPa / 26,000 psi | 69 MPa / 10,000 psi | 110 MPa / 16,000 psi | 97 MPa / 14,000 psi | 20-25 | 45 |
| 3004-H34 | 215 MPa / 31,000 psi | 170 MPa / 25,000 psi | 115 MPa / 17,000 psi | 105 MPa / 15,000 psi | 10-17 | 52 |
| 3004-H36 | 240 MPa / 35,000 psi | 200 MPa / 25,000 psi | 125 MPa / 18,000 psi | 105 MPa / 15,000psi | 9-12 | 63 |
| 3004-H36 | 260 MPa / 38,000 psi | 230 MPa / 33,000 psi | 140 MPa / 20,000 psi | 110 MPa / 16,000 psi | 5-9 | 70 |
| 3004-H38 | 285 MPa / 41,000 psi | 250 MPa / 36,000 psi | 145 MPa / 21,000 psi | 110 MPa / 16,000 psi | 4-6 | 77 |
3105 aluminum is primarily recycled aluminum. It has excellent corrosion resistance, formability, and weldability. Typical applications are the manufacturing of residential siding, mobile homes, and carrying goods.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | |
|---|---|---|---|
| Temper | Ultimate Tensile Strength (min – max) | Ultimate Yield Strength | % at 50mm |
| 3105-O | 110-155 MPa / 15,194 – 22,480 psi | – | 16 |
| 3105-H12 | 130-175 MPa / 18,854 – 25,381 psi | 115 MPa / 16,679 psi | 2 |
| 3105-H14 | 160-205 MPa / 23,206 – 29,732 psi | 145 MPa / 21,030 psi | 2 |
| 3105-H16 | 185-230 MPa / 26,831 – 33,358 psi | 170 MPa / 24,656 psi | 1 |
| 3105-H18 | 215 MPa / 31,183 psi | 190 MPa / 27,557 psi | 1 |
This grade is excellent for decorative anodizing. It is popular in the automotive industry because of its supreme surface finishing characteristics and relatively high welded strength which makes it suitable for auto bodies.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | HARDNESS | |||||
|---|---|---|---|---|---|---|---|---|
| Temper | Ultimate Tensile Strength | Ultimate Yield Strength | Shear Strength | Fatigue Strength | % at Break | Brinell | ||
| 5049-O | 210 MPa / 31,000 psi | 91 MPa / 13,000 psi | 19,000 | 131 | 14,000 | 96 | 18 | 52 |
| 5049-H11 | 220 MPa / 33,000 psi | 110 MPa / 16,000 psi | 20,000 | 137 | 14,000 | 96 | 15 | X |
| 5049-H12 | 240 MPa / 34,000 psi | 170 MPa / 25,000 psi | 20,000 | 140 | 14,000 | 96 | 9.1 | 66 |
| 5049-H13 | 250 MPa / 36,000 psi | 160 MPa / 23,000 psi | 21,000 | 150 | 14,000 | 99 | 8 | X |
| 5049-H14 | 250 MPa / 37,000 psi | 200 MPa / 29,000 psi | 22,000 | 150 | 14,000 | 98 | 4.8 | 72 |
| 5049-H15 | 270 MPa / 39,000 psi | 200 MPa / 29,000 psi | 22,000 | 150 | 13,000 | 91 | 3.4 | X |
| 5049-H16 | 240 MPa / 35,000 psi | 280 MPa / 41,000 psi | 23,000 | 160 | 15,000 | 100 | 3.1 | 80 |
| 5049-H17 | 290 MPa / 42,000 psi | 250 MPa 36,000 psi | 24,000 | 170 | 14,000 | 96 | 2.3 | X |
| 5049-H18 | 280 MPa / 41,000 psi | 320 MPa / 47,000 psi | 27,000 | 180 | 15,000 | 100 | 2 | 88 |
| 5049-H22 | 240 MPa / 35,000 psi | 150 MPa / 21,000 psi | 21,000 | 140 | 17,000 | 110 | 9.5 | 63 |
| 5049-H24 | 260 MPa / 38,000 psi | 180 MPa / 26,000 psi | 22,000 | 150 | 15,000 | 100 | 9 | 70 |
| 5049-H26 | 290 MPa / 41,000 psi | 220 MPa / 31,000 psi | 24,000 | 170 | 18,000 | 120 | 5.6 | 78 |
| 5049-H28 | 330 MPa / 48,000 psi | 260 MPa / 37,000 psi | 28,000 | 190 | 16,000 | 110 | 4 | 87 |
| 5049-H32 | 240 MPa / 35,000 psi | 150 MPa / 21,000 psi | 21,000 | 140 | 17,000 | 120 | 9.5 | 63 |
| 5049-H34 | 260 MPa / 38,000 psi | 180 MPa / 26,000 psi | 22,000 | 150 | 16,000 | 110 | 9 | 70 |
| 5049-H36 | 290 MPa / 41,000 psi | 220 MPa / 31,000 psi | 24,000 | 170 | 17,000 | 120 | 5.6 | 78 |
| 5049-H38 | 320 MPa / 47,000 psi | 260 MPa/ 38,000 psi | 27,000 | 190 | 17,000 | 120 | 3.9 | 87 |
5052 aluminum coil is typically used for mailboxes, ladders, railings, and more. This aluminum plate has good corrosion resistance, workability, and formability.
| GRADE | SIZES ROUTINELY STOCKED | ||
|---|---|---|---|
| Temper | Thickness (Metric/Imperial) | Width | Length |
| 5052-O | .25 – 6mm / 1/64 – 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
| 5052-H32 | .25 – 6mm / 1/64 – 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
| 5052-H34 | .25 – 6mm / 1/64 – 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
| 5052-H36 | .25 – 6mm / 1/64 – 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
| 5052-H38 | .25 – 6mm / 1/64 – 15/64″ | 36″, 48″, 60″ | 96″, 120″, 144″ |
This alloy has excellent corrosion resistance and tolerates extreme environments like immersion in seawater and industrial chemicals. It is weldable and, among the non-heat treatable alloys, it demonstrates some of the highest strength. Shipbuilding is a common application for this grade.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | |
|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | |
| 5083-O | 42 KSI | 21 KSI | 14% |
5086 aluminum has high strength that can be increased with cold working and is a suitable grade for the marine, automotive, and armor and defense industries.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | |
|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | % |
| 5086-O | 44 KSI | 14 KSI | 16% |
This non-heat treatable performance alloy is excellent for the automotive industry. It shows good strength, corrosion resistance, high quality surface finishing, excellent weldability, and is easily formed.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | HARDNESS | ||
|---|---|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | Shear Strength | % at break | Brinell |
| 5182-O | 275 MPa/39,900 psi | 130 MPa/18,900 psi | 170 MPa/25,000 psi | 12 | 74 |
5251 aluminum has high fatigue strength, good weldability, and good corrosion resistance. It is seen in the aircraft, marine, automotive, and food processing industries.
| GRADE | STRENGTH | ELONGATION | |
|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Set 0.2% | % at 50mm |
| 5251-O | 170 – 215 MPa | 65 MPa | 15-20 |
This alloy is suitable for seawater applications. Vehicle bodies, ship parts and exteriors, and fishing equipment are other common applications for this grade.
| TEMPER | ||||
|---|---|---|---|---|
| Tensile Strength MPa | Yield Strength MPa | % Elongation at 50mm | Brinell Hardness | |
| 5754-H111 | 160-200 | 60 | 16 | 44 |
| 5754-H114 | 190-260 | 80 | 12 | 52 |
| 5754-H22 | 220-270 | 130 | 7 | 63 |
| 5754-H24 | 240-280 | 160 | 6 | 70 |
| 5754-H26 | 265-305 | 190 | 4 | 78 |
This aluminum grade is a high strength heat treatable alloy with good resistance to corrosion. It is commonly seen in the auto industry for parts like outer plates, roofs, fenders, and doors.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | HARDNESS | ||||
|---|---|---|---|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | Fatigue Strength | % at break | Brinell | ||
| 6016-T4 | 200 MPa | 30,000 psi | 110 MPa | 15,000 psi | 68 MPa | 27 | 55 |
| 6016-T6 | 280 MPa | 40,000 psi | 210 MPa | 31,000 psi | 89 MPa | 11 | 80 |
This high-strength, general-purpose aluminum is an ideal aluminum where a combination of good surface finishing, corrosion resistance, and good strength-to-weight ratio are required. There are many common applications for this alloy, ranging from structural frame molding to bridge components, sail boats, and other marine applications.
| GRADE | STRENGTH (METRIC/IMPERIAL) | HARDNESS | ||
|---|---|---|---|---|
| Temper | Ultimate Tensile Strength | Yield Strength | Brinell | Rockwell |
| 6061-T4 | 290 MPa / 42,0000 psi | 270 MPa / 40,000 psi | 95 | B60 |
| 6061-T6 | 310 MPa / 45,000 psi | 270 MPa / 39,000 psi | 95 | B60 |
6082 is one of the higher-strength 6000 series aluminum alloys. It can be used for aviation fixtures, trucks, towers, rail structures, and marine accessories.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION |
|---|---|---|
| Temper | Ultimate Tensile Strength | % |
| 6082-O | 130MPa / 18,854 psi | 27 |
This aluminum is a high-strength heat treatable alloy. It demonstrates excellent surface finishing, corrosion resistance, and good weldability. It is commonly seen in the automotive industry, for auto body paneling.
| GRADE | STRENGTH (METRIC/IMPERIAL) | ELONGATION | |
|---|---|---|---|
| Temper | Tensile Strength MPa | Yield Strength MPa | % at 50mm |
| 6181-T4 | 230 | 120 | 24 |

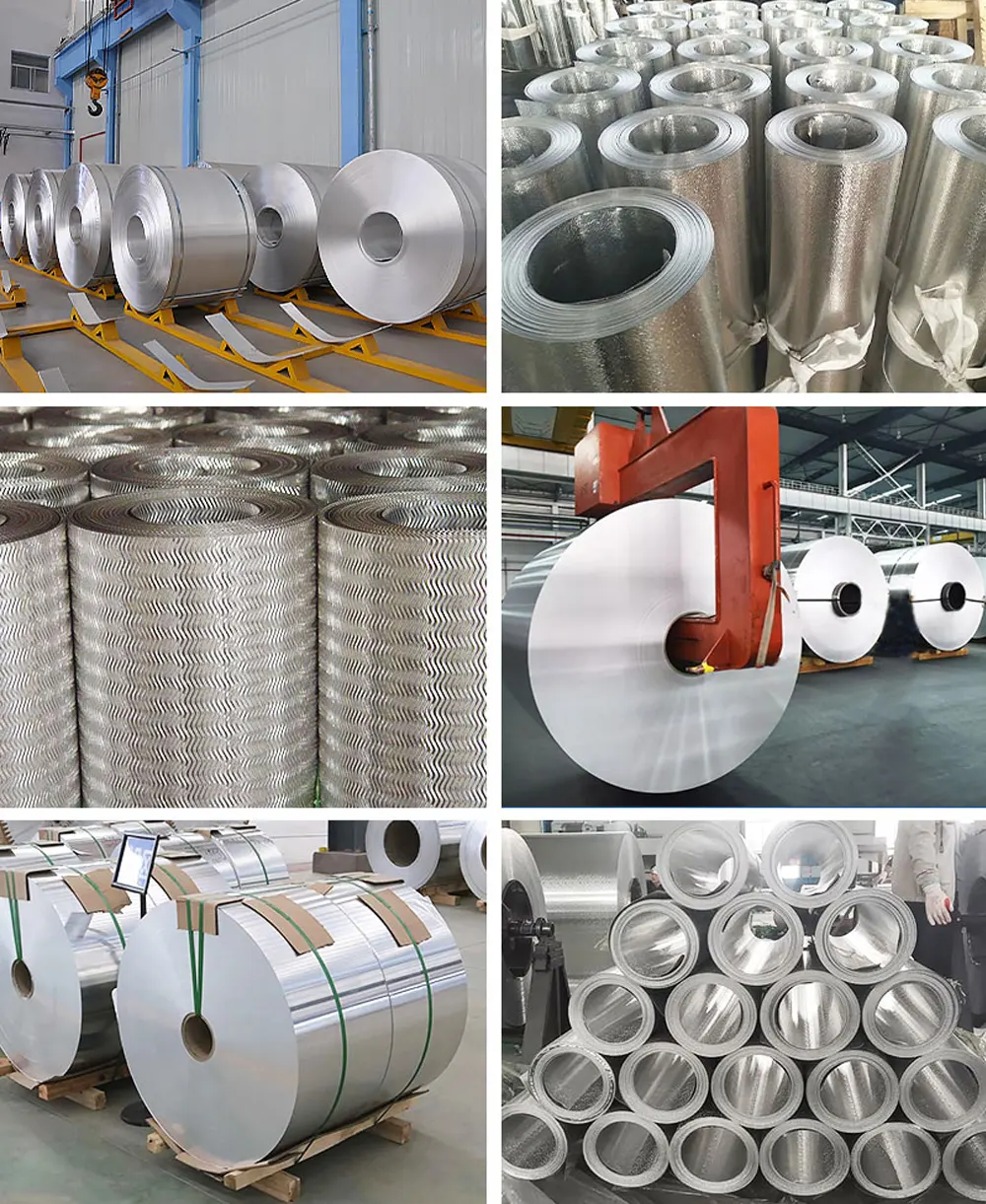

Product Show of Aluminum Coil

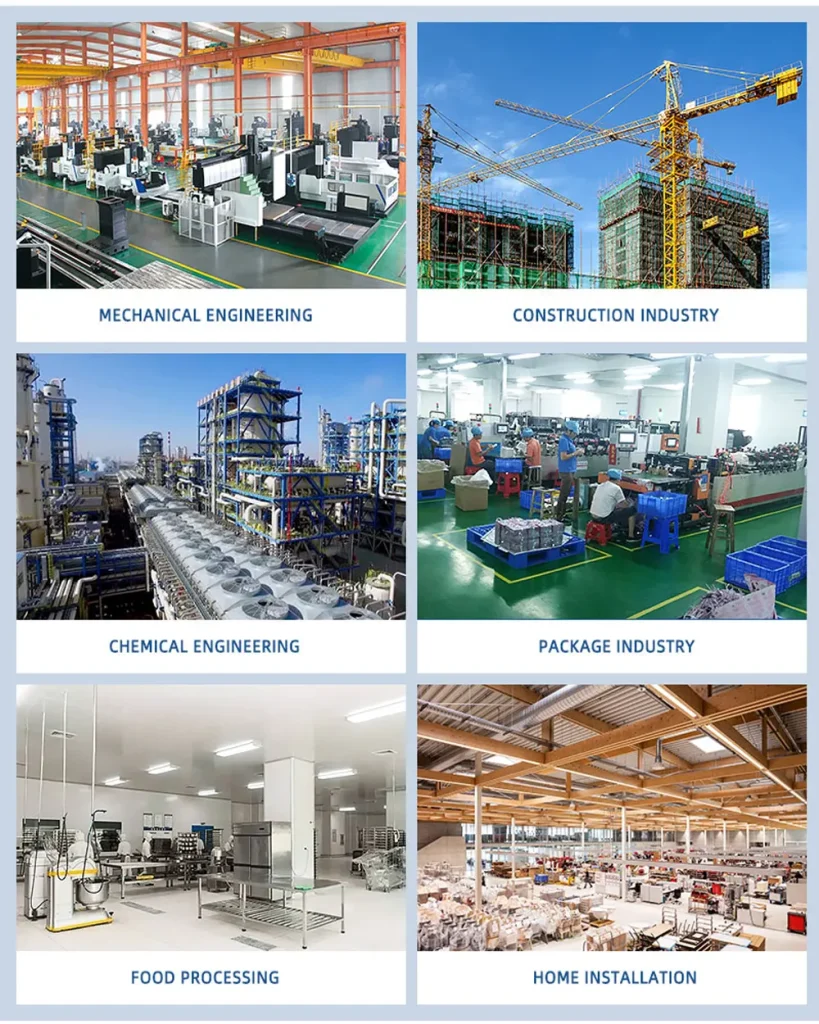

Application Of Aluminum Coil
FAQ
Shandong Baowu Steel Group. located in Jinan,Shandong province, having a large-scale enterprise specializing in the production of matel steel products. We can provide customers with different kinds of metal products, such as stainless steel,galvanized steel， aluminum, PPGI, PPGL, carbon steel, etc.
Mill Test Certification is supplied with shipment, Third Party Inspection is available.
We have advanced steel production equipment, with 15 years of experience in metal manufacturing and sales ，the perfect after-sales service system enables us to become the best choice for many customers.
Free samples are available for your checking and testing. And to get free samples, you need to send us inquiry and tell our salesman your detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples.
The delivery date is within 7-15 days. After confirming the receiving port and order quantity, we will arrange for you to get the best shipping price
