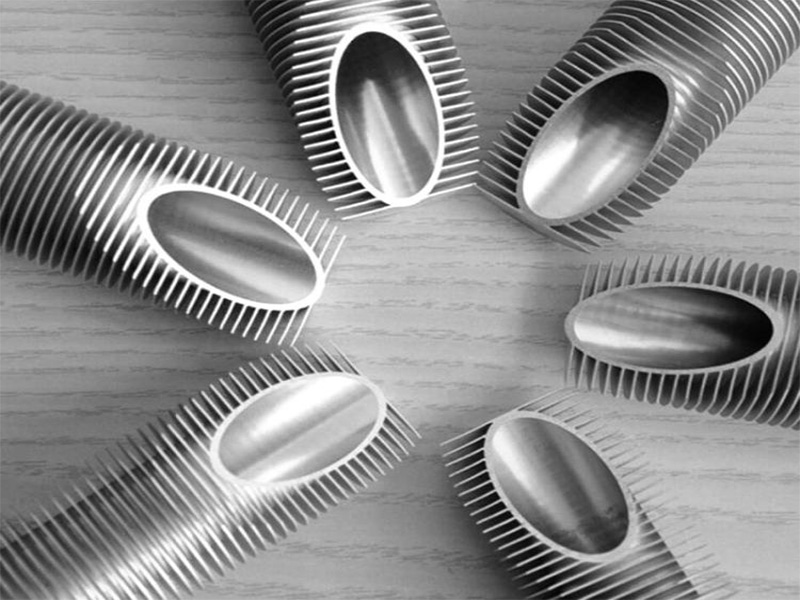

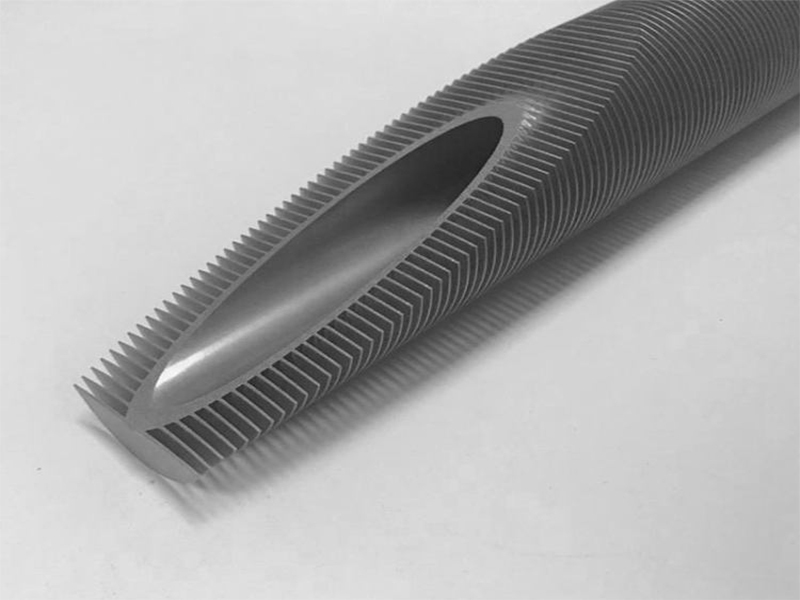

Aluminum Finned Tube

Fin Material

Aluminium 1050/1060/1070/1100/5052/6063

Fin Type

Solid or serrated or as per your drawing

Fin Pitch

Min. 1.5mm

Fins Per Pitch(Density)

4-12

Fin Segments

12, 16, 24 fins or as per your design

Fin Height

Max. 16.5mm

Fin Thickness

0.4mm Average

Core Tube Material

Aluminum alloy (Core tube with extremely thin wall materials can be applied.)

Base Tube OD

Max 2”(50.8mm)

Tube Wall Thickness

No Limit

Tube length

No limit

Accessories

Tube Support Box, Clamp & Spacer Box

Packaging Details

(1) Steel frame case sealed by plywoods with each end-capped.

(2) Solid fumigated wooden box with each end-capped.
