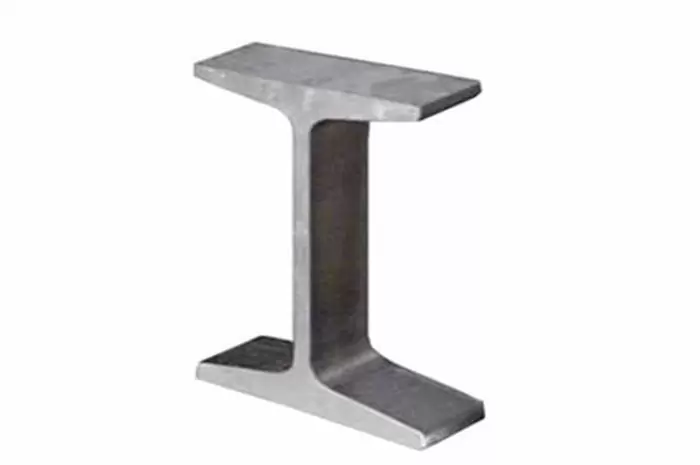

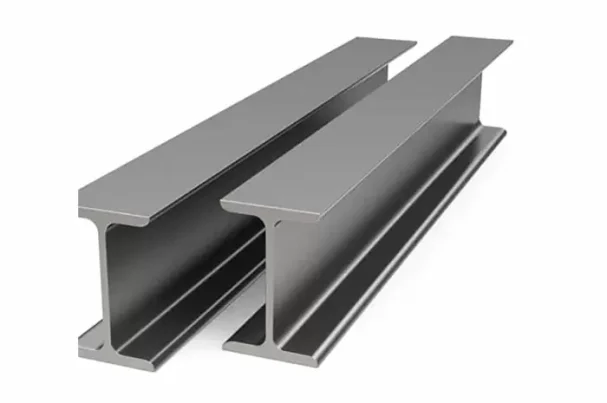

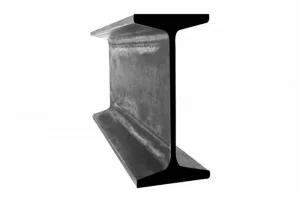

I-beam, also known as steel beam, is a long strip of steel with an I-shaped cross section. I-beams are divided into ordinary I-beams and light I-beams. It is a section steel with an I-shaped cross-section.
Supply Ability：5000 Tons
Price Term:CIF CFR FOB EX-WORK
Delivery Time:within 7 days
MOQ:1 Ton
Standard:JIS, JIS, AISI, ASTM, GB, DIN, EN, etc.
Certificate:JIS, ISO9001
Export Packing:Waterproof paper, and steel strip packed.
Share To:
| Product Name | I-beam |
| Origin | Shandong, China |
| Transport Package | Standard seaworthy packing |
| Production Capacity | 500000 tons/year |
| Standard | AISI, ASTM, BS, DIN, GB, GIS, EN10024, EN10034, EN10162, IS808 |

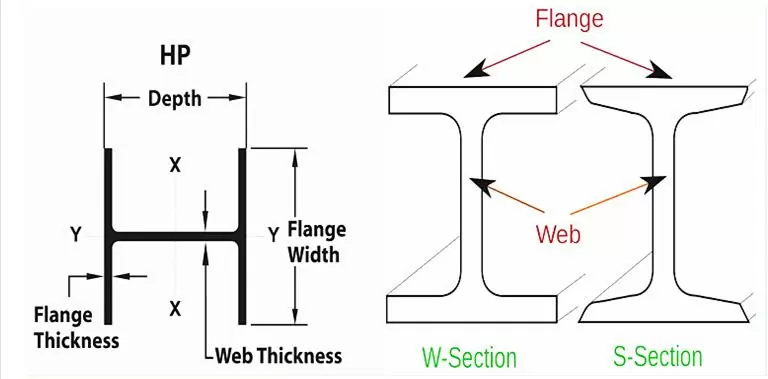

| Specification | Beam Depth (h)：100 mm, 120 mm, 140 mm, etc. |
| Flange Width (w)：63 mm, 74 mm, 80 mm, etc | |
| Web Thickness (b)：4.5 mm, 5.0 mm, 5.5 mm, etc. | |
| Flange Thickness (t)：7.6 mm, 8.4 mm, 9.1 mm, etc. | |
| Grades | S235JR-S355J2, A36, A572, A588, A992 |
| Material | Q135, Q235B, Q345A, B, C, D, 45#, 27SiMn |
| Invoicing | By theoretical weight |
| Technique | Hot rolled molding |
| Payment Term | 30% deposit+ 70% balance |
| Application | Widely used in building structure and other metal structure |
Hot Rolled Common I Beam | Hot Rolled Common I Beam | ||||||
Waist Height | leg breadth | Thickness | theory weight | Waist Height | leg breadth | Thickness | theory weight |
80 | 50 | 4.5 | 7.52 | 280 | 122 | 8.5 | 43.492 |
100 | 68 | 4.5 | 11.261 | 280 | 124 | 10.5 | 47.888 |
126 | 74 | 5 | 14.223 | 300 | 126 | 9 | 48.084 |
140 | 80 | 5.5 | 16.89 | 300 | 128 | 11 | 52.794 |
160 | 88 | 6 | 20.513 | 320 | 130 | 9.5 | 52.717 |
180 | 94 | 6.5 | 24.143 | 320 | 132 | 11.5 | 57.741 |
200 | 100 | 7 | 27.929 | 320 | 134 | 13.5 | 62.765 |
200 | 102 | 9 | 31.069 | 360 | 136 | 10 | 60.037 |
220 | 110 | 7.5 | 33.07 | 360 | 138 | 12 | 65.689 |
220 | 112 | 9.5 | 36.524 | 360 | 140 | 14 | 71.341 |
250 | 116 | 8 | 38.105 | 400 | 142 | 10.5 | 67.598 |
250 | 118 | 10 | 42.03 | 400 | 144 | 12.5 | 73.878 |
400 | 146 | 14.5 | 80.158 | ||||

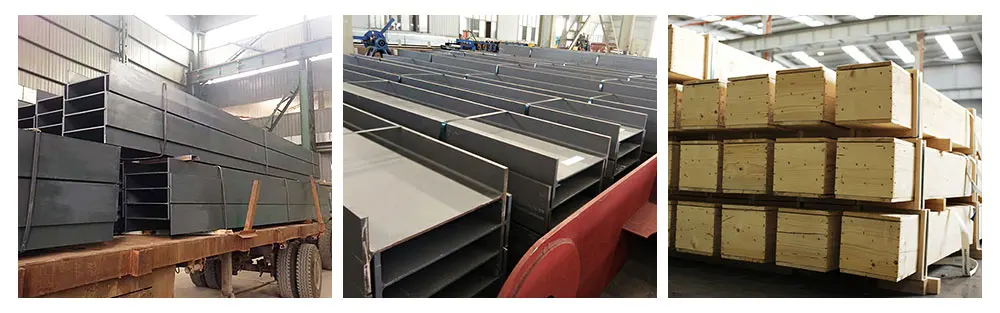

Packaging: Standard export packaging.
Shipping:We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
