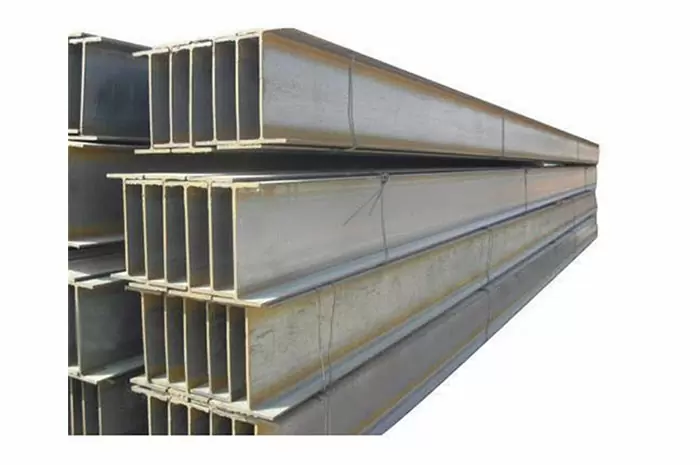

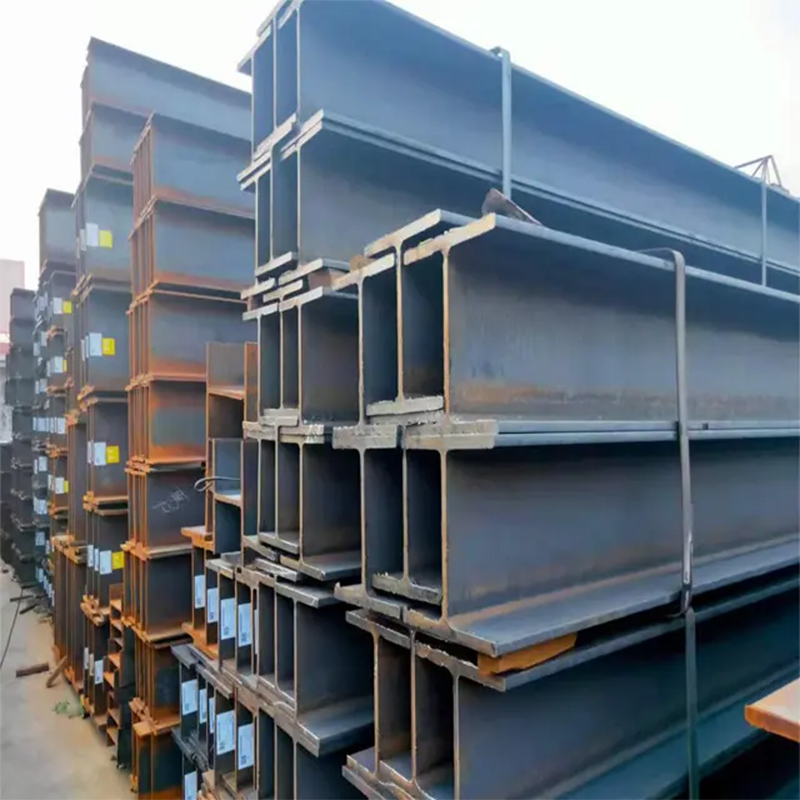

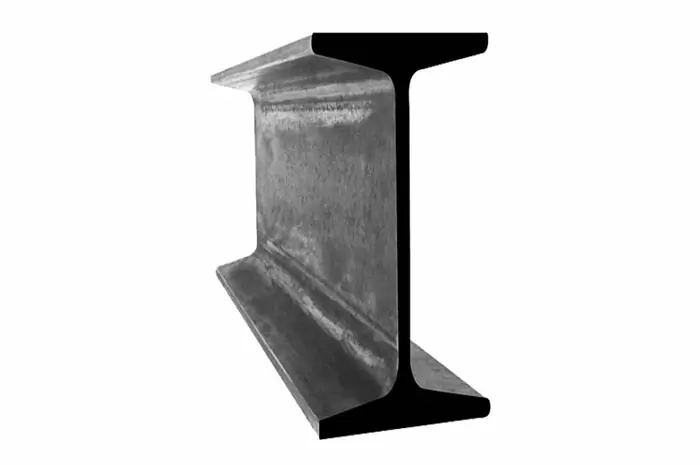

H-beam section is a type of economic construction steel,Since it’s good mechanical property, it be widly used for big building(such as factory,high building etc…as well as bridge,vessel, lifting transportation machinery,basic structure bracket,basic pile and so on
Supply Ability：5000 Tons
Price Term:CIF CFR FOB EX-WORK
Delivery Time:within 7 days
MOQ:1 Ton
Standard:JIS, JIS, AISI, ASTM, GB, DIN, EN, etc.
Certificate:JIS, ISO9001
Export Packing:Waterproof paper, and steel strip packed.
Share To:
| All specifications products can be customized according to customer requirements | |
| Product Name | H beam |
| Size | 1.Web Width (H): 100-900mm |
| 2.Flange Width (B): 100-300mm | |
| 3. Web Thickness (t1): 5-30mm | |
| 4. Flange Thickness (t2): 5-30mm | |
| Length | 1m – 12m , or according to your requests. |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Material | Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 |
| Technique | Hot rolled |
| Application | Construction structure |
| Price Item | FOB,CIF,DDU,FCA,EXW ,.etc |
| Packing | Export standard packing or according to customers’ requirement |
| Supply Ability | Within10-15 workdays,25-30days when the quantity beyond 1000tons |
Hot Rolled Common H Beam | Hot Rolled Common H Beam | ||||||
Waist Height | leg breadth | Thickness | theory weight | Waist Height | leg breadth | Thickness | theory weight |
80 | 50 | 4.5 | 7.52 | 280 | 122 | 8.5 | 43.492 |
100 | 68 | 4.5 | 11.261 | 280 | 124 | 10.5 | 47.888 |
126 | 74 | 5 | 14.223 | 300 | 126 | 9 | 48.084 |
140 | 80 | 5.5 | 16.89 | 300 | 128 | 11 | 52.794 |
160 | 88 | 6 | 20.513 | 320 | 130 | 9.5 | 52.717 |
180 | 94 | 6.5 | 24.143 | 320 | 132 | 11.5 | 57.741 |
200 | 100 | 7 | 27.929 | 320 | 134 | 13.5 | 62.765 |
200 | 102 | 9 | 31.069 | 360 | 136 | 10 | 60.037 |
220 | 110 | 7.5 | 33.07 | 360 | 138 | 12 | 65.689 |
220 | 112 | 9.5 | 36.524 | 360 | 140 | 14 | 71.341 |
250 | 116 | 8 | 38.105 | 400 | 142 | 10.5 | 67.598 |
250 | 118 | 10 | 42.03 | 400 | 144 | 12.5 | 73.878 |
400 | 146 | 14.5 | 80.158 | ||||
Packaging: Standard export packaging.
Shipping:We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
