Carbon Steel Sheet
Carbon steel sheet is an iron-carbon alloy with a carbon content of 0.0218% to 2.11%. It is also called carbon steel sheet. Generally, it also contains small amounts of silicon, manganese, sulfur and phosphorus. Generally speaking, the higher the carbon content of carbon steel sheet, the harder and stronger it is.
Best Price Sheet Carbon Steel Panel High Carbon
Best Price Sheet Carbon Steel Panel High Carbon Thickness:0.1mm-300mm or as requiredLead Time:Quantity(Tons) 1 – 100 >100Est. Time(days) 25 NegotiableCustomization:Customized logo (Min. Order: 50 Tons)Customized packaging
Alloy Steel Plate
Alloy Steel Plate The steel plate is a kind of material which is used a lot. It is divided into ordinary low carbon steel plate and
Carbon Steel Plate
Carbon Steel Plate The biggest characteristics of high manganese steel are two: First, the greater the external impact, the higher the wear resistance of its own
DC03 Carbon Steel Plate
DC03 Carbon Steel Plate With the development of science and technology and industry, the material put forward higher requirements, such as higher strength, resistance to high

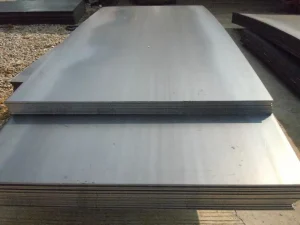

Wear Plate
Wear Plate Atmospheric corrosion resistant steel, is between ordinary steel and stainless steel of low alloy steel series, weathering steel by carbon steel added a small

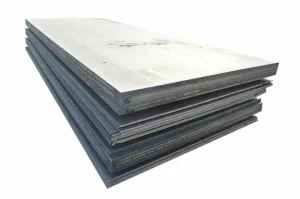

Weather Resistance Steel Plate
Weather Resistance Steel Plate Atmospheric corrosion resistant steel, is between ordinary steel and stainless steel of low alloy steel series, weathering steel by carbon steel added
Specifications of Carbon Steel Sheet
| Product Name: | Carbon Steel Sheet |
| Place of Origin: | Shandong, China |
| Standard: | Aisi, ASTM, bs, DIN, GB, JIS,etc |
| Material: | Q235B,Q355B,Q235-A·F, 20, 45, 60, 40Mn, 65Mn, 08F, T7-13 ZG200-400 |
| Thickness: | 0.1-3mm, or as customer’s requirements |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, 2000mm according to customer’s requirement |
| Length: | any length as required |
| Processing Service: | Bending, Welding, Cutting |
| Tolerance: | ±1% |
| Packaging ： | export standard package or as request |
| Terms of price： | FOB, CIF, CFR, EXW |
| Payment terms: | TT, Irrevocable LC at sight, Western union, Ali trade assurance |
Product Show of Carbon Steel Sheet
Factory Show of Carbon Steel Sheet
Application of Carbon Steel Sheet
1. Cold rolled strips are used for a wide range of applications, such as automobile manufacturing, electrical products, rolling stock, aviation, precision instruments, food cans, etc.
2. The uses of hot rolled steel.
- Structural steel plate. Mainly used in the production of steel structural plates, bridges, ships, vehicles, etc.
- Weathering steel: Used in the production of containers and special vehicles, also used in building structures.
- Automotive structural steel plate: high strength steel plate with good stamping performance and welding performance, used for the production of automotive FRAME, WHEEL, etc.
- Hot-rolled special steel plates: used for the production of various mechanical parts.
- Cold-rolled raw plates; used for the production of various cold-rolled products, including CR, GI, color coated plates, etc.
FAQ
- Carbon steel sheet can be divided into three kinds of carbon structural steel sheet, carbon tool steel sheet and free-cutting structural steel sheet according to its usage. Carbon structural steel sheet can be further divided into steel sheet for engineering and construction and structural steel for machinery manufacturing.
- According to the smelting method, it can be divided into open hearth steel plate and converter steel plate.
- According to the method of deoxidation, it can be divided into boiling steel (F), killing steel (Z), semi-killing steel (b) and special killing steel (TZ).
- Carbon steel sheets can be divided into low carbon steel sheets (WC≤0.25%), medium carbon steel sheets (WC0.25%-0.6%) and high carbon steel sheets (WC>0.6%) according to the carbon content.
- According to the quality of steel sheet, carbon steel sheet can be divided into ordinary carbon steel sheet (higher phosphorus and sulfur content), high quality carbon steel sheet (lower phosphorus and sulfur content) and high grade high quality steel sheet (lower phosphorus and sulfur content). As well as super premium steel sheets.
Manganese
About 0.25%~0.80%. Solid solution strengthening; remove FeO, reduce the brittleness of steel sheet; sulfide synthesis MnS, can reduce the harmful effect of sulfur. Useful.
Silicon
About 0.10%~0.40%, solid solution strengthening; useful to eliminate the adverse effect of FeO on the quality of steel plate.
Sulfur
FeS forms low-melting eutectic with Fe (melting point is 985℃), which makes the steel plate brittle and cracking during hot working at 1000~1250℃, i.e. “hot brittleness”. Harmful.
Phosphorus
Strength and hardness are improved, but plasticity and toughness are reduced, “cold brittleness”. Harmful.
Carbon structural steel sheet
Grade: Example Q235-A-F, i.e. σs=235MPa. Brand notes. Q is yield strength A quality grade (there are four grades of ABCD), F is boiling steel.
Features: Low price, excellent process properties (such as weldability and cold formability).
High quality carbon structural steel sheet
Species. Example 45, 65Mn, 08F.
Brand description: directly indicates the parts per million of carbon content in the metal.
Grade. Example: T12 steel plate indicates carbon tool steel with Wc=1.2%.
Brand description: T plus parts per thousand of the carbon content of the metal.
Features. It is eutectic and super eutectic steel plate with high strength, high hardness and good wear resistance. It is suitable for manufacturing various low-speed cutting tools.
Common steel plate grades and uses.
T7, T8: Used in the manufacture of parts that can withstand certain impact and require toughness. Such as sledgehammer, punch, chisel, woodworking tools, scissors.
T9, T10, T11: Manufacturing tools that require high hardness and high abrasion resistance, with less impact. Such as taps, small drills, dies, hand saw blades.
T12, T13: Manufacture tools that are not resistant to impact. Such as files, scrapers, razors, measuring tools.
Cast steel pieces
Grade. For example, ZG200-400, which means
Cast steel sheet with σs=200MPa and σb=400MPa.
Performance. Casting properties are worse than cast iron, but mechanical properties are better than cast iron.
